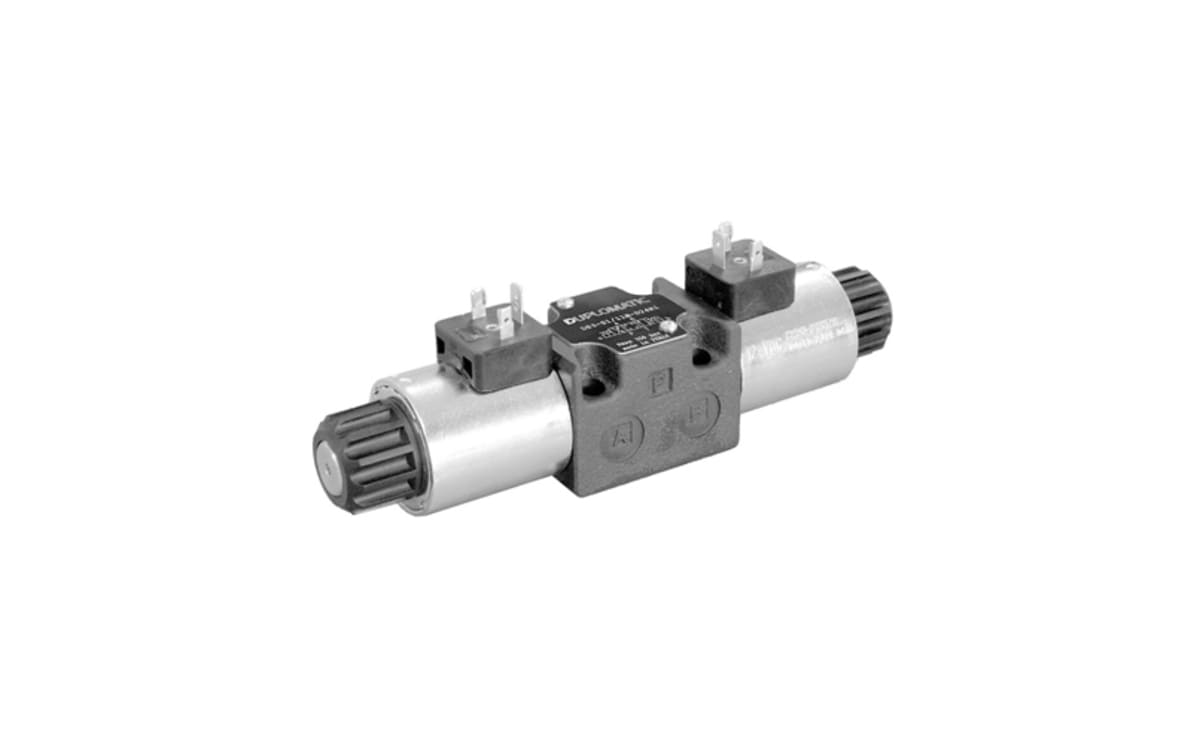

DS3 Direct Operated Directional Solenoid Valve

The DS3 are spool-type directional solenoid valves that control the flow and direction of a fluid , for subplate mounting. They are available in 3- and 4-way designs, with spring return/centering or mechanical detent. The valve body is made of high-strength cast iron and is equipped with large internal ducts to minimize pressure drops. The solenoids have interchangeable coils and watertight oil-filled tubes.

The valve is available for direct or alternating current power supply. The direct current valves can also be powered by alternating current, by using connectors with a built-in rectifier bridge.

As an alternative to the standard manual emergency control, the emergency control with lever, push button, bellows and mechanical stop devices is available.

The DS3 valve range also includes high IP rating versions with high corrosion resistance and a version with UL certified coils.
